Product SKU: H85-TDR-Ex2-R93

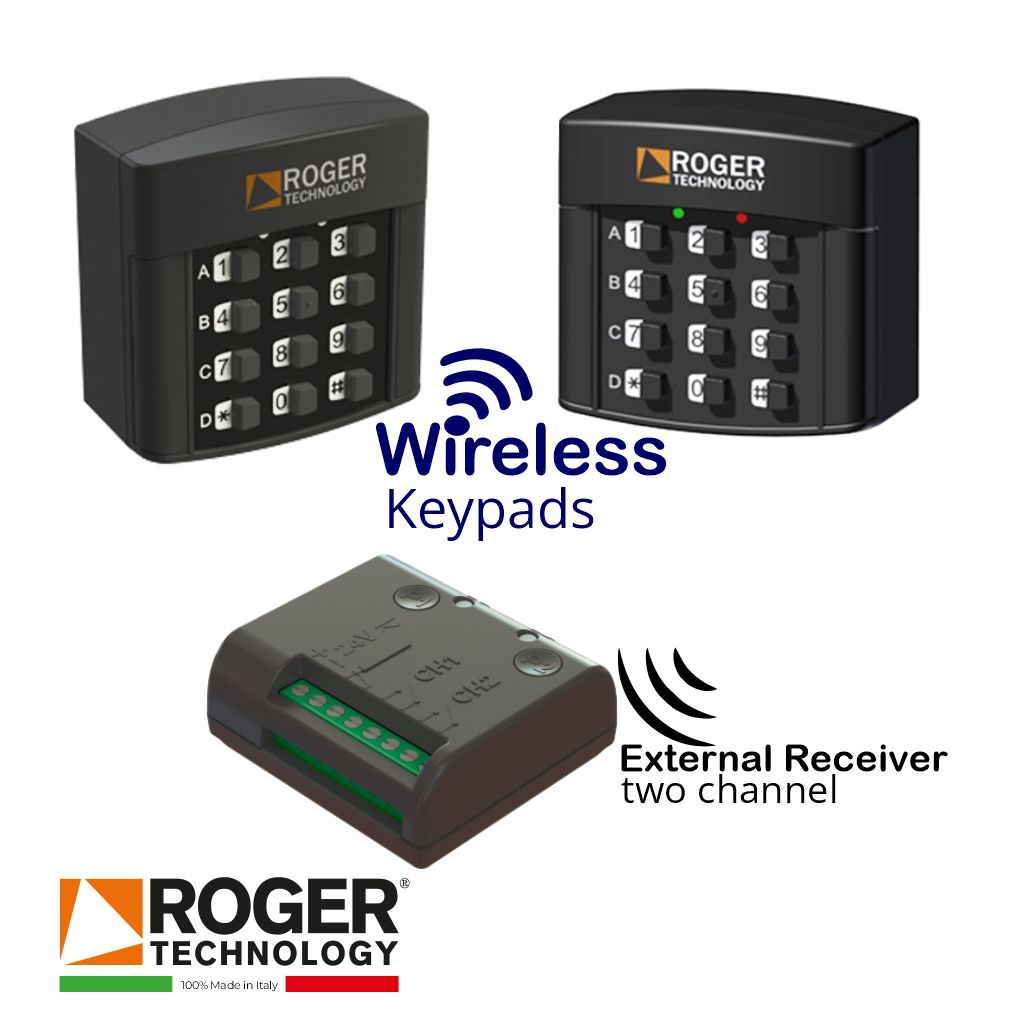

Roger Technology 4 Channel Wireless Keypad H85/TDR/E Up to 6 Digit User Code and 450 User Codes, external, for rolling code and fixing code transmission.
| Operating temperature: | -10°C +55°C |
| Protection level: | IP54 |
| Average consumption when keypad active: | 12 mA |
| A number of user codes storable: | 450 |
| Maximum number of digits per user code: | 6 |
| Minimum number of digits per user code: | 3 |
| Codification: | Fix code - Rolling Code |
| Modulation: | AM/ASK |
| Carried frequency: | 433.92 Mhz |
| A number of combinations: | 65536 (fix code) - 4.294.967.296 (rolling code) |
| Number of bits of the identification code: | 16 (fix code) - 32 (rolling code) |
| Number of bits transmitted: | 28 (fix code) - 144 (rolling code) |
| Battery: | 2 x CR2032 |
| Battery life: | Minimum 2 years with 10 activations/day |
| Installation Type: | External |
| Maximum dimension product in mm (L x W x H): | 75 x 77 x 42 |

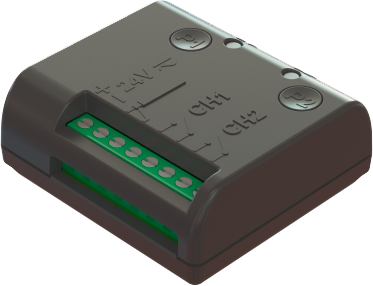

| Standard power: | 12/24V AC/DC |
| Absorption: | 30mA |
| Operating temperature: | -10+55°C |
| Number of channels: | 2 |
| Codification: | Fix code |
| Modulation: | AM/ASK |
| Carried frequency: | 433.92 Mhz |
| Relay contacts max current: | 0.5A |
| Relay contacts max voltage: | 24V AC/DC |
| Exit: | Relay |
| Storable codes: | 50 |
| Sensibility: | -107 dBm |
| Input impedance: | 50 Ω |
| Maximum dimension product in mm (L x W x H): |
55 x 44 x 20 |
