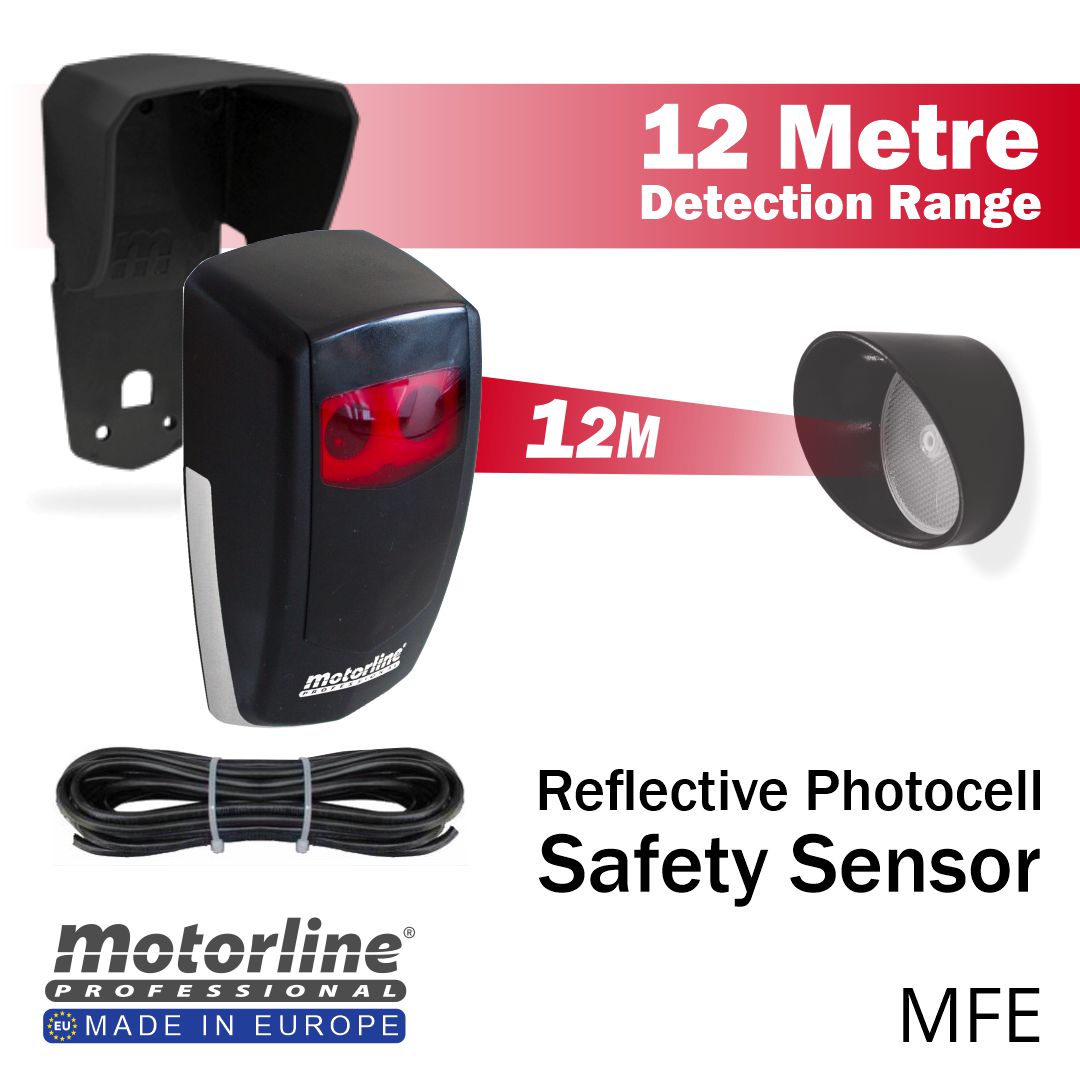

Motorline MFE Reflective Safety Sensor – Gate Automation Safety Sensor | Australia
High-performance Motorline MFE reflective safety sensor for gate automation and gate opener safety sensor applications in Australia. Reliable obstacle detection up to 12 m, IP54 weather protection, quick installation and maximum safety for automatic swing and sliding gates.
Reflective safety sensor designed for automatic gates and garage door systems
Up to 12 m detection range without requiring opposing transmitter/receiver units
Works as a gate opener safety sensor for sliding and swing gate automation
Simple installation with only one side of wiring (reflective mirror setup)
AC/DC 12-24 V wide voltage compatibility
IP54 weatherproof design for outdoor Australian conditions
Built-in polarisation filter for improved detection accuracy
Visual LED indicators for alignment and signal strength
The Motorline MFE Reflective Safety Sensor is a high-quality reflective photocell safety device engineered for gate automation systems, ensuring enhanced protection around residential and commercial automated gates in Australia. Unlike traditional dual-unit safety beams, the MFE uses a single transmitter with a reflective mirror, making installation easier and reducing wiring complexity — especially beneficial for larger driveways or complex layouts.
With an effective detection range of up to 12 metres, the MFE reliably detects vehicles, people, pets, and other obstacles in the gate's path. The polarisation filter helps eliminate false triggers from mirrored or shiny surfaces, ideal for bright Australian sunlight. It’s compatible with most gate opener control boards and built to withstand outdoor conditions thanks to its IP54 certification and rugged casing.
Whether it’s for automatic sliding gates, swing gates, or garage door systems, the Motorline MFE stands out as a trusted gate opener safety sensor, balancing performance, reliability, and ease of installation.
| Specification | Details |
|---|---|
| Model | Motorline MFE |
| Sensor Type | Reflective infrared safety photocell |
| Detection Range | Up to 12 m |
| Power Supply | AC 12-24 V / DC 12-24 V / DC 36 V |
| Working Current | ≈ 100 mA |
| Protection Rating | IP54 Outdoor weather protection |
| Operating Temperature | −25 °C to +65 °C |
| Output Type | Relay (volt-free contacts) |
| LED Indicators | Power & signal strength |
| Filter Type | Polarisation filter (reduces reflections) |
| Installation Height | ~500 mm typical mounting height |
The Motorline MFE safety sensor is designed for easy integration with most gate automation control units used in Australia’s automatic sliding and swing gates. Its reflective design means only one side of the driveway needs wiring, which reduces installation time and cost — especially on wider entrances or driveways with aesthetic constraints.
Q: What is a reflective safety sensor?
A reflective safety sensor uses a single transmitter plus a reflector mirror to bounce the infrared beam back to the detector — helping detect obstacles and stop the gate.
Q: Is the Motorline MFE suitable for Australian weather conditions?
Yes — rated IP54 for outdoor use and a wide temperature range suited for Australian climates.
Q: Can it work with any automatic gate opener?
Most modern gate automation systems support the Motorline MFE through standard safety input terminals.
Q: What is the detection distance?
Up to 12 m of effective obstacle sensing in clear conditions.
Q: Do I need a second sensor on the opposite side?
No, the reflective setup means you only need the sensor plus the reflector mirror on the same side.
Q: Is professional installation recommended?
For best performance and alignment accuracy — especially on larger or commercial gates — a professional setup is advised.
