Product SKU: MOL-GALO600-S

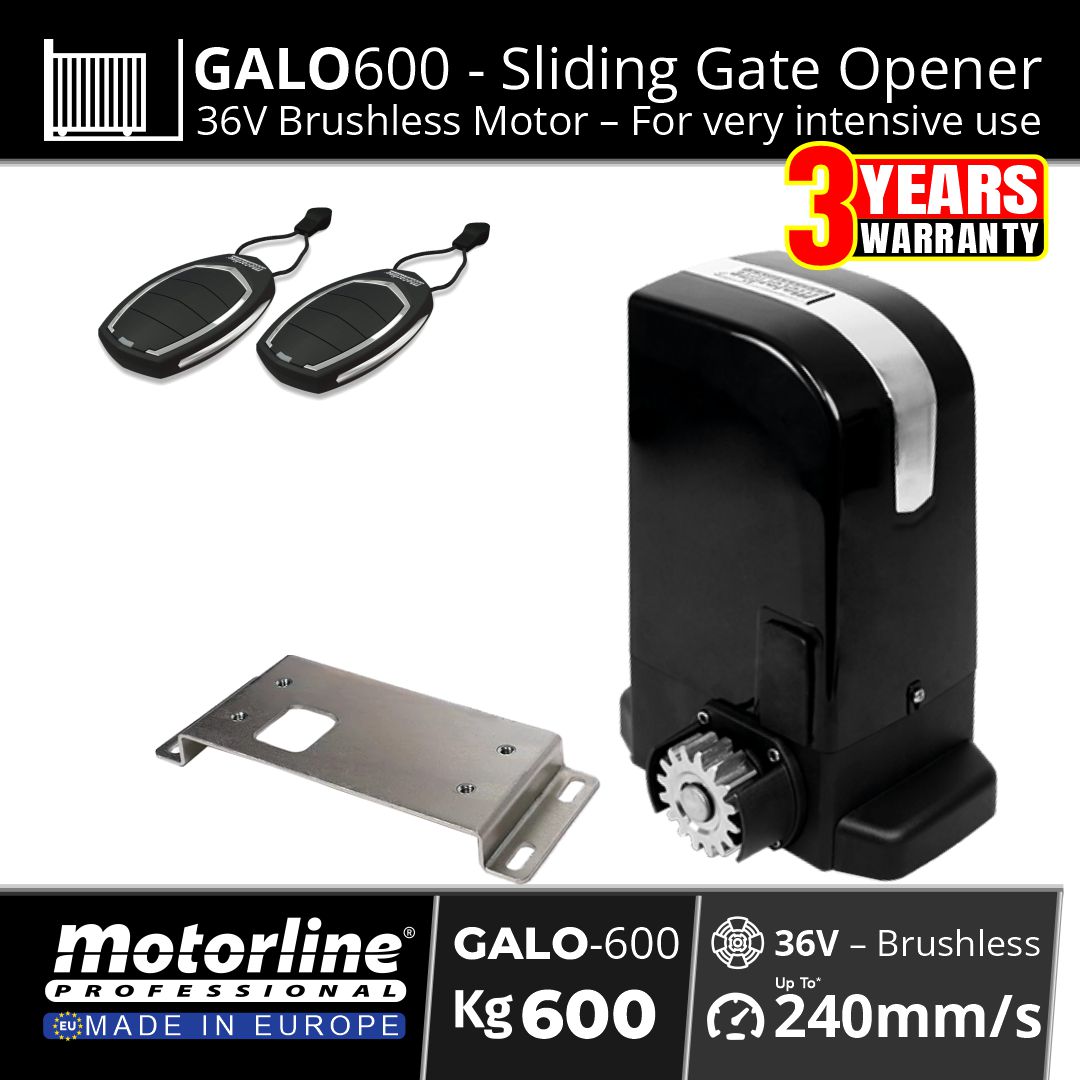

Motorline GALO600 Sliding Gate Opener | 600kg Brushless Gate Motor Australia
Motorline GALO600 sliding gate opener with 36V brushless motor. Designed for intensive residential and commercial use. Smooth, quiet, encoder-controlled sliding gate automation. Available from Automotion Plus Australia.
Motorline GALO600 Sliding Gate Automation System with 36V Brushless Sliding Gate Motor up to 600kg. The European-made Sliding Gate Opener features smooth, quiet operation, advanced obstacle detection, magnetic limits and an encoder-controlled sliding gate.
The Motorline GALO600 Sliding Gate Opener is a high-performance 36V brushless sliding gate motor designed for intensive residential and light commercial applications.
Supporting sliding gates up to 600kg, the GALO600 delivers smooth, quiet operation, advanced obstacle detection, and encoder-controlled precision, making it an ideal upgrade from traditional AC or brushed DC motors.
Supplied by Automotion Plus Australia, the GALO600 is built for reliability, safety, and long-term durability.
36V DC Brushless (BLDC) motor
Sliding gates up to 600kg
Native digital encoder
Smooth acceleration & deceleration
Advanced obstacle detection
Integrated radio receiver
Low noise ≤ 50 dB
Magnetic Limits
IP44 weather protection
Optional battery backup
Smart control ready (MCONNECT)
 |
Compatible with MCONNECT LINK
|
 |
Intuitive interface Easily check device status via the programming display or LEDs. |
 |
Autoprogramming Electronic control board with display and navigation buttons for simplified installation in just two steps. |
 |
Precise adjustments Full control of position and speed at any time, with specific adjustments for acceleration, deceleration, start time, deceleration distance and approach speed during opening and closing |
| Specification | Value |
|---|---|
| Max Gate Weight | 600 kg |
| Motor Voltage | 36 V DC |
| Nominal Power | 260 W |
| Speed Range | 120 – 240 mm/s |
| Speed @ Max Load | 214 mm/s |
| Impulse Force | 450 N |
| Duty Cycle | 55% |
| Encoder | Native digital encoder |
| Protection Class | IP44 |
| Noise Level | ≤ 50 dB |
The Easy To Install Surface-Mounted Raised Base Plate is a purpose-built foundation that takes the guesswork out of installing your Motorline GALO sliding gate opener. Unlike standard flat plates, this raised version provides crucial elevation, protecting your motor from ground-level moisture, debris, and minor flooding that could otherwise shorten the lifespan of the electronics. It arrives as a complete "ready-to-go" package with all necessary fittings included, meaning you won’t be hunting for matching anchor bolts or fasteners halfway through the job. By providing a pre-levelled, rock-solid platform that aligns perfectly with the GALO’s mounting footprint, this plate ensures your drive gear and rack mesh with surgical precision, resulting in quieter operation and a much faster installation.
Debris Clearance: Keeps the motor clear of dirt, leaves, and puddles.
All-in-One Kit: Includes the heavy-duty plate plus all required nuts, bolts, and anchors.
GALO Compatibility: Tailored specifically for the Motorline GALO series for a seamless fit.
Structural Integrity: Made from high-grade materials to absorb the torque and vibration of daily gate cycles.
Residential sliding driveway gates
Townhouses & duplexes
Light commercial properties
Is the GALO600 suitable for residential gates?
Yes. It’s ideal for heavy residential sliding gates up to 600kg with frequent daily use.
Can I add battery backup later?
Yes. The GALO600 supports optional backup batteries.
Advanced Sliding Gate Automation Controller for Brushless Motors
The Motorline Electronic Sliding Gate Motor Control Board is a high-performance electronic control board engineered for brushless sliding gate automation systems. It features an integrated 433.92 MHz radio receiver, supports full-open and pedestrian-open remote codes, and provides dedicated outputs for motor power, safety devices, flashing lights and accessories — all optimised for reliability and compatibility with advanced actuator setups.
Built for professionals and enthusiasts alike, this control board is ideal for sliding gate systems in residential, commercial or industrial applications throughout Australia.
Dedicated Sliding Gate Control Board developed for brushless motor automation.
Integrated 433.92 MHz Radio Receiver supports rolling code and remote control learning.
Full & Pedestrian Open with Remote Controls.
Multiple Safety Outputs, including support for photocell and stop device.
Flashing Light & RGB Output Support for visual alerts.
Emergency Battery Input for fail-safe operation in the event of power loss.
Designed for Australian sliding gate openers, remote builds and retrofit projects.
Works seamlessly with MMBL-BRAKE and app-based control modules, such as MCONNECT (where available).
The Motorline Sliding Gate Motor Control Board is an advanced electronic controller designed specifically for sliding gate opener systems using brushless DC motors. Its integrated radio system and extensive compatibility make it ideal for automatic gate installations that require reliable access control and safety features.
Built with modern automation needs in mind, the MC91BL-SC distributes power to your gate motor, manages safety devices such as photocells and stop switches, and controls external accessories, such as flashing lights. With programmable remote memory and intuitive input terminals, this board is engineered to enable fast, efficient installation and operation.
Whether you are upgrading an existing sliding gate opener or building a new smart gate solution in Australia, the Sliding Gate Motor Control Board delivers premium performance, integrating with optional braking modules and remote-connect technologies.
| Specification | Value |
|---|---|
| Motor power output | 36 Vdc 400 W max. |
| Control board supply | 21 Vac / 26 Vac auto-select |
| Flashing light output | 36 Vdc 4 W max. |
| RGB output | 24 Vdc 100 mA max. |
| Auxiliary output | 24 Vdc 8 W max. |
| Remote radio frequency | 433.92 MHz |
| Max remote memory | 100 full + 100 pedestrian |
| Battery Input | 24 Vdc |
| Operating temp | −25 °C to +55 °C |
| Fuse ratings | F1: 10A 250V, F2: 1.6A 250V |
Designed for robust Motorline GALO series sliding gate automation systems with long-range radio and remote code memory — perfect for residential, strata, and commercial entrances.
Supports a wide variety of inputs and outputs, including motor, safety, accessory and warning elements for a complete gate control solution.
Compatible with optional modules like MMBL-BRAKE for slope braking and MCONNECT LINK for app-based control and monitoring.
Built to operate in demanding environments — ideal for Australian climates with high summer heat or variable conditions.
Q: What motors are compatible with the Control Board?
A: It is used for Motorline GALO series 36 Vdc brushless DC sliding gate motors.
Q: Can I connect backup batteries?
A: Yes — the board supports emergency battery input (24 Vdc) for continued gate operation during power failures.
Q: Does it work with remote controls?
A: Yes — the integrated 433.92 MHz receiver supports rolling code remotes and can store up to 100 full and 100 pedestrian remotes.
Q: Is the board suitable for Australian sliding gates?
A: Absolutely — with robust inputs for safety devices and accessories as well as compatibility with Motorline GALO series 36 Vdc brushless DC sliding gate motors.
Q: Can I program the gate's slow start/stop?
A: While the board’s core functions are supplied, gate performance settings (e.g., slow start/stop) are typically configured through the motor’s parameters.
{file}MOL-GALO-SMP{/file}
Motorline FALK 4-channel remote control – premium rolling code gate automation remote & gate opener controller. Compatible with Motorline gates, sliding and swing gate openers. Designed with secure 433.92 MHz tech and up to 100 m range. Perfect for residential and commercial use in Australia.
The Motorline FALK Remote Control is a high-performance, multi-channel wireless controller designed to operate gate automation systems and gate openers with precision and reliability. Built with secure rolling code technology and compatible with most Motorline receivers, this remote offers exceptional range, durability, and ease of use — making it ideal for home, commercial, and industrial gate automation applications across Australia. Robust in design and simple to program, the FALK remote is essential for anyone upgrading or expanding their automated gate system.
Rolling Code Security Technology – Prevents code cloning and enhances gate access security.
433.92 MHz Frequency – Standard radio frequency used in gate automation remotes across Australia.
4-Channel Control – Operate multiple gates or devices with one remote.
Up to 100 m Transmission Range – Long-distance use for residential or commercial gates.
Low-Power Battery – Lightweight CR2032 battery (3 V) with long life.
LED Signal Indicator – Confirms successful transmission.
Easy to Programme – Compatible with most Motorline receivers and straightforward to pair.
Durable ABS Construction – Built for everyday use in dry environments.
The Motorline FALK Remote Control is a versatile and robust gate opener remote designed for modern gate automation systems. Whether you’re upgrading an existing Motorline gate or installing new automation on a slide gate, swing gate, or garage door, the FALK remote provides secure, long-range control over access. With its rolling code encryption, this remote continuously changes its transmitted code after each use, significantly improving security over fixed-code alternatives.
Featuring four distinct buttons, the FALK remote can be programmed to operate different gates or functions from a single device — making it perfect for homes, multi-vehicle properties, or commercial sites. The intuitive LED indicator confirms signal transmission with every button press, ensuring a confident, seamless experience. Its compact, ergonomic design fits comfortably on keychains and is built with quality materials for everyday reliability.
| Specification | Detail |
|---|---|
| Model | Motorline FALK Remote |
| Frequency | 433.92 MHz |
| Channels | 4 buttons |
| Rolling Code | Yes |
| Transmission Range | Up to 100 m (open space) |
| Battery Type | 1× CR2032 (3 V) |
| LED Indicator | Yes |
| Protection Class | IP40 |
| Material | ABS Plastic & Zinc Alloy |
| Operating Current | ≤12 mA |
| Recommended Use | Gate Automation & Gate Openers |
| Environment | Dry locations only |
Rolling code encryption makes the Motorline FALK one of the safest gate opener remotes available, preventing duplication and enhancing access control.
With four channels, control multiple gates or accessories from one handheld remote — perfect for large homes, multi-gate properties, or business sites.
An outstanding range of up to 100 m lets you operate gate automation systems from farther away — ideal for driveways and long entrance paths.
Pairing with Motorline receivers is straightforward, saving time during installation or replacement.
Designed with quality materials and a clear LED signal indicator for reliable everyday performance.
Q1: Is the Motorline FALK remote compatible with all gate systems in Australia?
A: The FALK remote is designed for Motorline receivers. Check your gate opener’s receiver frequency and compatibility; it works with standard 433.92 MHz Motorline systems.
Q2: How far can I operate my gate opener from?
A: In open spaces, the FALK remote can transmit up to ~100 m. Actual range can vary based on obstacles and site conditions.
Q3: Can I program the remote myself?
A: Yes — it pairs via the receiver’s learn function, as outlined in your gate opener’s controller manual. It’s straightforward but may require a technician if unfamiliar.
Q4: What battery does the remote use, and how long does it last?
A: It uses a 3 V CR2032 battery with a typical life of months to years, depending on use.
Q5: Does this remote work for sliding and swing gate openers?
A: Yes — it is compatible with a range of Motorline sliding, swing and garage gate automation receivers.
