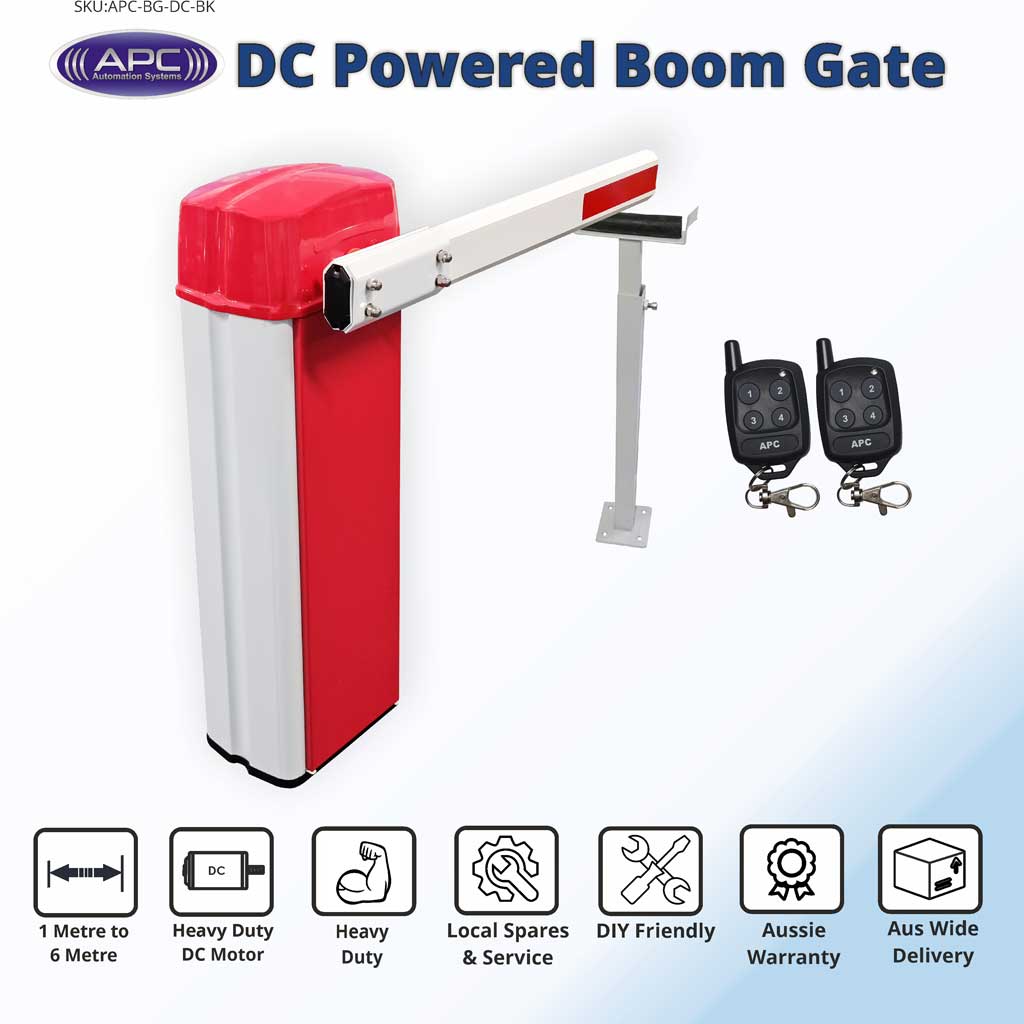

Heavy Duty DC Boom Operator Package (upto 6m Arm)

DC Powered Boom Operating System for security and traffic control management designed for entry and exit points at industrial complexes, body corporate managed complexes, factories, schools, car parks, caravan parks and more. The aluminum boom arm is lightweight and adjustable in size from 1m up to 6m in length. It is also supplied with pre installed reflective tape to help for visibility at night time.

The body itself is constructed from robust steel and finished in a smooth red powdercoat. The system is available in two diffrent orientations, a left side and a right side system depending on the best suited for the site and cabling structure.

The 80 Watt DC motor is very quiet and fast on opening and closing (~6 seconds per direction with a 6m arm and as little as ~2 seconds for a 1m arm), with precise limit encoder settings to ensure accurate positioning during every cycle.

Incase of a power outtage the system is equiped with a built in overrride to operate the boom gate into either the open and close position.

Available as an option the back up battery system will allow for continued use of the gate system for up to 50 Cycles or Two days and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up ready for use.

Included and pre-installed within the operator are TWO tensioning balancing springs to assist in ensuring a smooth jutter free closing movment. Tensions can be increased/decreased by adjusting preload if necessary or removing one of the springs when a shorter length arm is being used.

The internal control panel is fitted with on board push button switches for UP, DOWN and emergency STOP to assist with the installation process.

The control panel is completely pre-wired to the motor with an internal 24V power transformer and is pre-wired to a 10Amp power plug (the control panel is ready to plug into a power point), if required the control panel can also be hadrwired to the mains power via an isolator.

Left Side Option

Right Side Option

An adjustable resting cradle is supplied with the boom operator to help prevent damage caused by vandalism, the operator can be used without this item however its purpose is to help prevent the arm being pulled down or rested on whilst the operator is in the closed position. It also helps in the installation process as it allows for a simple closeby installation of the reflector from the reflective sensor package (if used).
