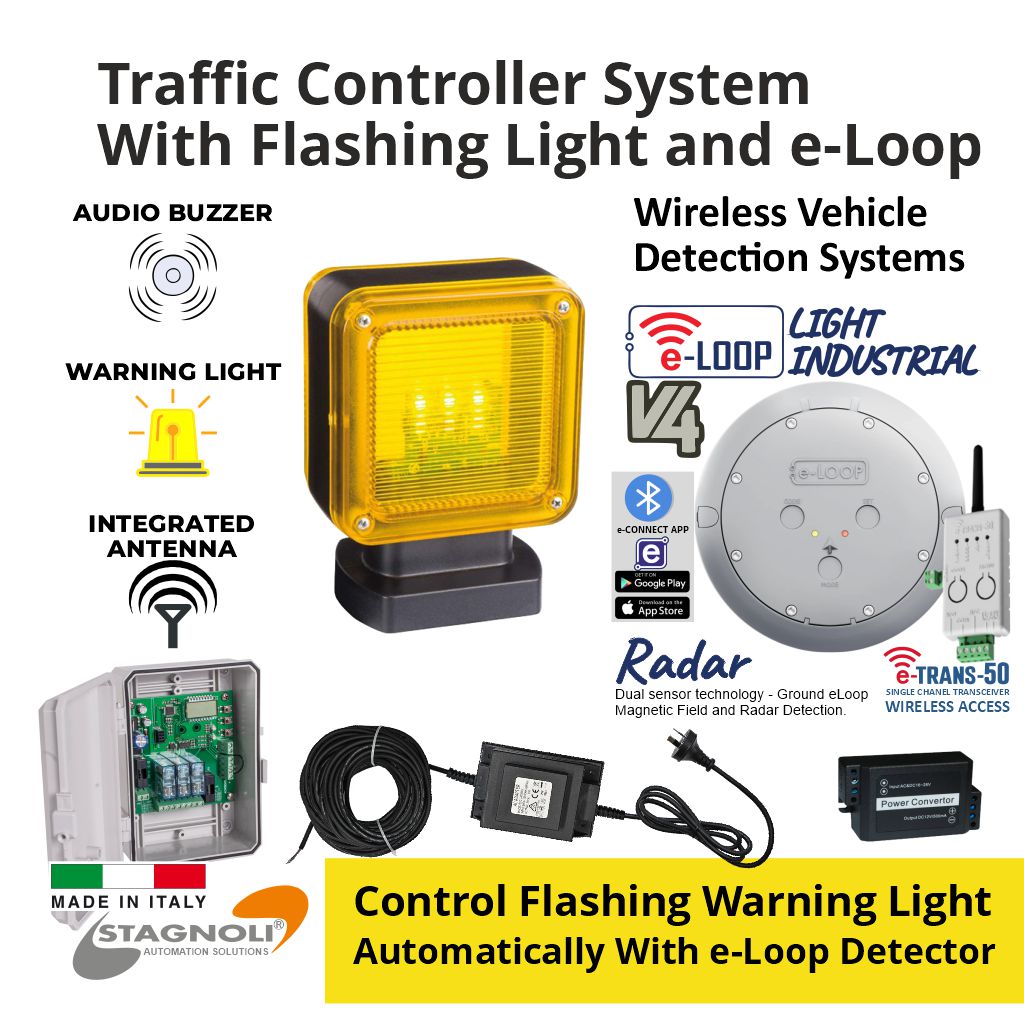

Complete Package for Automatically Controlling The Flashing Warning Light With eLoop Radar Detector. Warning Light Controller with Flashing Warning Light/Buzzer and Integrated Antenna, e-Loop Detector Combo | Universal LED warning flashing light, multi-mode, Universal LED flashing light with integrated audio buzzer warning sound | Made in Italy

Traffic Controller, e-Loop, Flashing Light With Buzzer Wiring Diagram

Note: Power supply should be 24 Volts DC

Traffic Light Controller for Two-Lights and 2 or 3 Light Lens | 24v ACNSEM3L Made in Italy by Stagnoli

Control board for 2 traffic lights with 2 or 3 lights. Specially designed for alternating one-way roads in apartment buildings (e.g. ramps), company and car park contexts. The ACNSEM3L universal electronic control unit has been a solution for managing two or three traffic lights with two or three lenses in situations where access driveways are narrow and require alternate transit (garage, parking, residence, etc.).

It can be programmed to operate cyclically or logically (e.g. when used with external sensors).

Highlights

• One Board for Two Trafic Lights
• Time-based work method
• Priority-based work method

Specifications and Wiring Diagram

Power: 24Vac/dc
Max Power Current: 0,5 A
Operating Temperature: -20°C to 60°C
Max Lights Power Current: 2A


Control Board Overview

1. Terminal board for power supply 24Vac/dc
2. Power supply and accessories fuse (T0,5A, 5x20)
3. Traffic light 2 terminal board
4. Traffic light 1 terminal board
5. Traffic lights management fuse (F2A 5x20)
6. Priorities input terminal board, with control devices (photocells, detection devices, etc.):
     IN1: programmable input for traffic light 1, N.O. by default
     IN2: programmable input for traffic light 2, N.O.by default
     IN3: emergency programmable input, N.C. by default
7. Auxiliary power supply 24Vac/dc 0,5 A
8. Menu navigation buttons
9. 5-language LCD display (IT, EN, FR, DE, ES)
     DL2- Traffic light operation 1
     DL1- Traffic light operation 2

Universal LED Warning Flashing Light, Integrated Audio Buzzer.

Flashing Warning Lights With Buzzer

Universal LED Flashing Warning Lights With Buzzer

6-LED Flashing light with high efficiency and low power consumption. Universal power supply, 12V – 24V and 230V.

This flashing light with an audio buzzer (beacon light warning alarm/siren) consumes about 93% less energy than traditional indicators, and the LED's lifespan is about 50 times longer than conventional incandescent lamps. The Flashing Warning Light with Warning Buzzer comes with a wall-mounting bracket, is easy to install, and has an IP65 degree of protection. The Warning Light allows you to select the type of light (steady or flashing) with a jumper on the board.

Dimensions and Technical Data - Universal LED Warning Flashing Light

Operating temperature: -20°C, +50°C

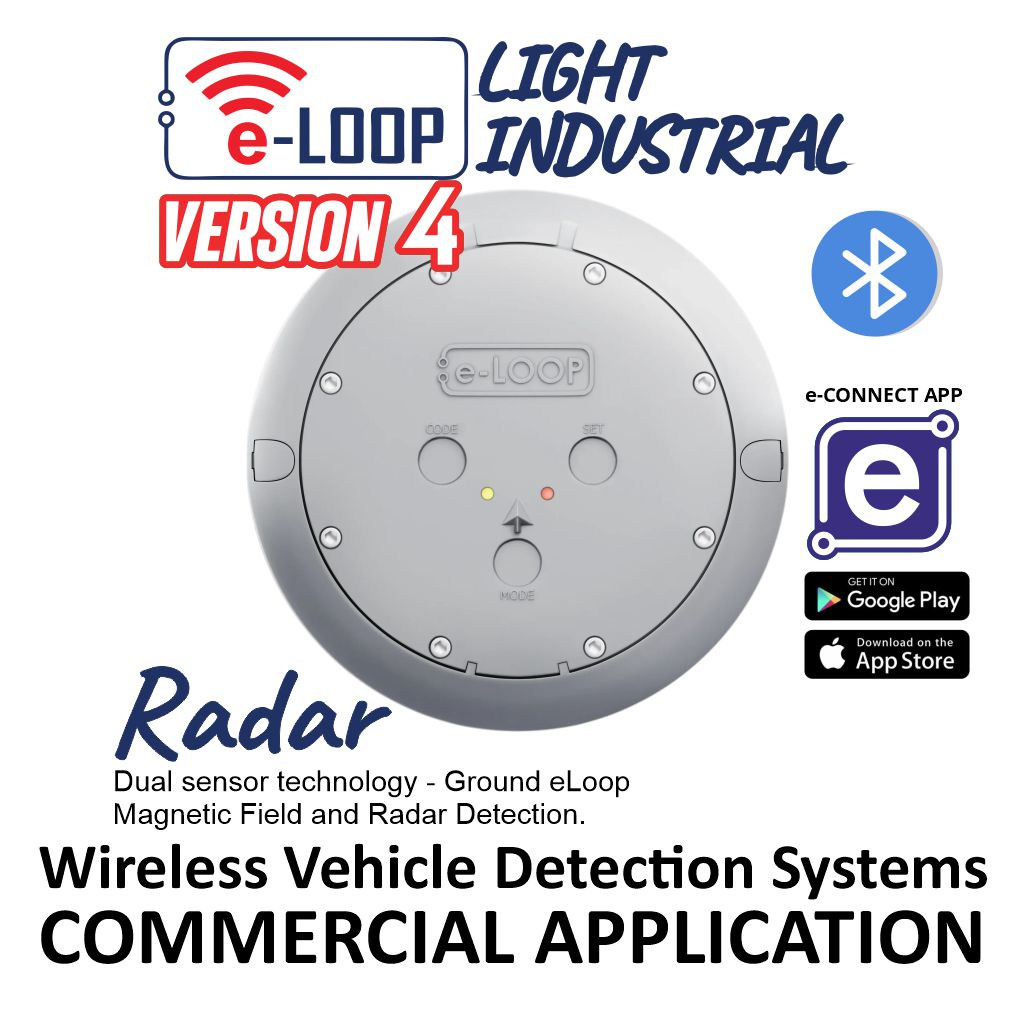

{file}e-loop-Light-Industrial-Exit-Presence-V4{/file}

{file}E-Trans-50-V4{/file}

12V DC Power Converter

12V DC Power Converter
Specifications

Input voltage: AC & DC 16-28V
Output voltage: DC 12V
Output current: 500mA
Operating temperature: -10° C~55° C (-14~131° F)
Operating humidity: 0-90%
Dimension: 73mm × 40mm × 23mm

External Transformer (Extendable up to 80 metres cable distance)

24V External weatherproof designed to be used in a low voltage cabling application of up to 80 meters, supplied with a pre-connected 20-meter cable. This is a perfect solution when running mains power to the gate is not viable due to costs, difficulty or simply to DIY.

Specifications

Type: Remote External Transformer

Input voltage: 240V AC

Output Voltage: Low Voltage 24v AC

Amperage: 10A

Input connection: Plug With 1m 240AC Pre-Connected Cable

Output connection: 20m Pre-Connected Cable (Extendable up to 80 metres)

Suitability: Outdoor use, 10amp Power-Point
