Product SKU: EV-D302

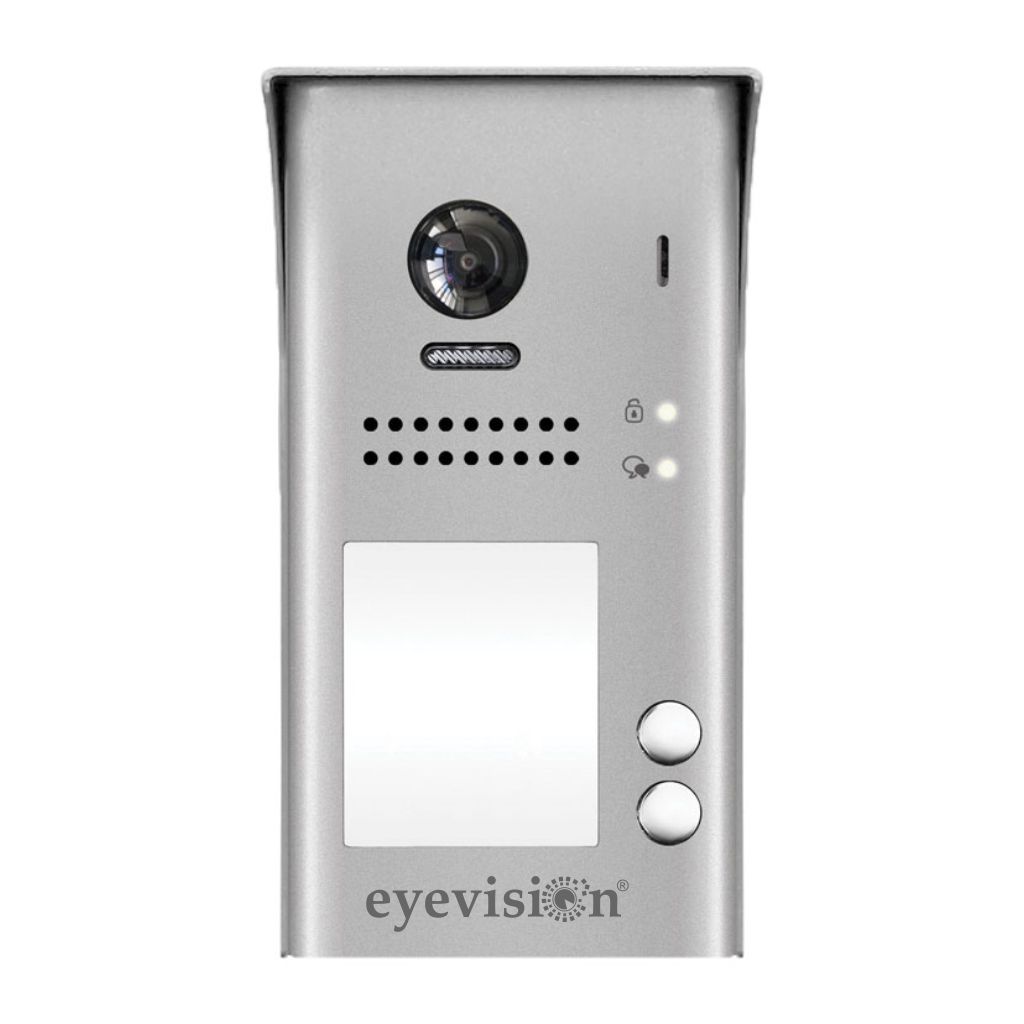

Eyevision® Two Wire EasyInstall Surface Mount Video Intercom 2 Call Buttons Door Station. 105° Wide Angle Video Doorbell Station

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

Eyevision® Two Wire EasyInstall Surface Mount Video Intercom 2 Call Buttons Door Station. 105° Wide Angle Video Doorbell Station

Product SKU: EV-D302

  •  In Stock

Price :

$250.00

    • 1
  • Add to Cart
  • Buy Now

  • Or in 4 payment of $62.50 with afterpay info

  • Compatible with all Eyevision® 2 Wire EasyInstall Intercom Video Systems - 105° Wide Angle Video Doorbell Station

Get More Info..

Product Information

Two Wire Eyevision® Add-on 2 Call Buttons Door Station
Suitable for use with any of the Eyevision® Two Wire Intercom Systems

Eyevision® 2 Wire Slim Design Surface Mounted Weatherproof Zinc Alloy Panel Door Station, Camera, Door Bell with Rain Cover, with built-in 105° Camera Angle and two-channel operation (1 channel is built into the door station, second lock channel via add-on relay EV-RLC-S which can be found under Eyevision® 2 wire accessories).

When the EV-D302 is coupled with the Eyevision® 2 Wire monitors, this door station will display the highest quality digital picture allowing the user to see who is at the gate or door as well as talk to the visitor and unlock the gate or door.

Features:

* Camera View: 105º Camera Angle
* 2 Call Buttons
* Material: Zinc Alloy Panel
* Camera: CMOS 800TVL
* 2 Channels Output (second lock via add-on component EV-RLC-S which can be found under two wire accessories)
* Weatherproof IP54
* Surface Mount, supplied with a Rain Cover
* Nameplate display with backlight

Specifications
Power Supply: DC 24V
Power Consumption: Standby 0.8W; Working 3W
Camera lens: Color CMOS, 800TVL
1/3’’ camera, 105º wide angle
Number of calling keys 2
Lock Power supply: 12Vdc, 250mA(Internal Power);
A number of relay circuits: 2(the second lock needs an external device to support)
Number of Relays: 2 (second using an add-on RLC)
Mounting: Surface wall-mount
Working temperature: -20ºC ~ +55ºC
Protection: IP54
Material: Zinc Alloy Panel
Wiring: 2 Wires, Non-Polarity
Dimension:  176(H)×90(W)×27(D)mm

Door Station Installation



Cable Requirements

Eyevision® 2 wire Cable Requirements



Cabling

  • CAT5 up to 80m between the door station and each apartment.
  • Straight Pair 1mm2 up to 50m between the door station and each apartment.
  • Twisted Pair 1mm2 up to 120m between the door station and each apartment.
  • Twisted Pair 1.5mm2 up to 200m between the door station and each apartment.



Recommendation:

The Eyevision® 2 wire monitors are very powerful and will deliver high-quality video and audio, it is recommended to use the best quality cables that will suit your installation. Use cables with very good-quality copper conductors in order to maximize the clarity of the system.

This is why we provide a free high-quality 20m twisted pair with every monitor. Using this cable will guarantee the best-optimized results in video and audio transmission for up to 200m.

Larger sizes of these twisted pair cables manufactured for this system are available at very competitive prices.
