Direct to Smartphone Keypad Video Doorbell Wi-Fi Intercom with Stainless Steel Electric Striker| Eyevision Wi-Fi Smart Video Intercom Access Control Systems (Strong Wi-Fi Signal Required at the Gate / Door, Signal Strength -55dBm or Higher)

Use all the features Around The World Using Your Mobile Phone. | Easy-to-install intercom System |

• HD 1080P 2.0MP Camera, 110° Wide Angle View.
• LED Lights For Night Vision.
• Live Video, Snapshot, Video Record.
• Halow WiFi Frequency: 800Mhz/900Mhz, With an External Antenna That Connects Directly to Your Wi-Fi (Max 15m).
• Compatible With CAT5 and CAT6 Cables For Up To 100m
• Easy-to-install Direct to Smartphone WiFi Intercom System
• See Your Visitors On Your Smartphones or Tablets, Along With Two-Way Communication & Door/Gate Release Function
• High Security With Each Device Having a Unique ID Number For Connection & Communications
• Built-in Keypad for Door or Gate Release Function by PIN Code AND IC Card Access
  • Touch Keypad, Max.200 PIN Codes Access.
  • IC Card Access, Max.200 Pcs. IC Cards.
  • Unlocking Time: 01 – 150 Seconds.
• Waterproof Construction IP rating 54; Surface Mount With Rain Cover
• Material: Aluminum Alloy.
• Video Compression: H.264/HD.265
• Power Consumption: Max. 150mA.
• Power Supply: DC 15V 1A.
• Dimension (L*W*D): 146*70*43mm(With Rain Cover)

Another innovative product from Eyevision®

How does it work:
When the visitor presses the call button on the door station, the unit will ring outside and also will call any/all the mobile phones and iPads programmed to the system, the user is then able to answer the call and has all the following functions:

1. Talk to the visitor
2. Open the door or gate
3. Take a video or take a picture

Additionally to this, the user can enter a code into the built-in keypad when standing at the gate or door to release the connecting door or gate.

The user can use the application installed on the Mobile device/iPad to monitor the live situation where the door station is installed. Again the user can monitor, take a video or capture a picture.

The APP for the EV-IP-KP22 can be downloaded FREE of charge from the Google PLAYSTORE or from the Apple STORE.

Ease of Installation Intercom System:

The EV-IP-KP22 has two connection options:
1- Wireless from door station to the router (Providing the router and the door stations are in range and the router's wi-fi connection is very good).
2- Using a CAT5 cable with RJ45 connectors between the router and the door station.

ES-138 Electric Striker



• Stainless steel design
• 12V DC 250mA Fail Secure
• Recess Mounted
• 800Kg Holding Strength
• Dimensions: 124Lx32Wx33H(mm)

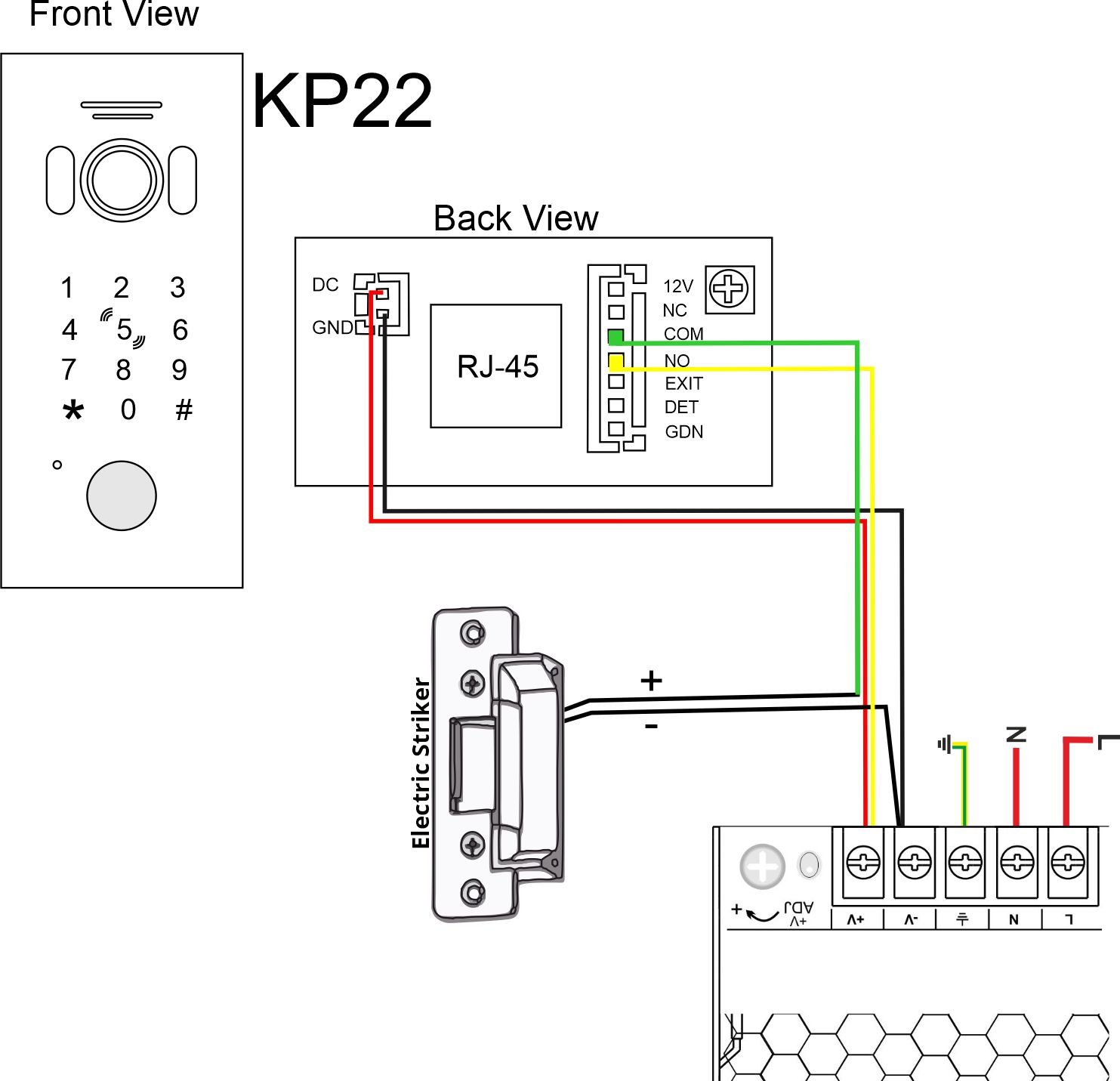

Wiring Diagram

12V DC Power Supply

Lock and Access Control Power Supply 12V 3A DC

LRS-35-12 Single Output Switching Power Supply 12V/3A Output

A 35W single-output enclosed type power supply with a 30mm low-profile design.

The input range is 85-264VAC, and the output is 12VDC / 3A. Suitable for all 12V devices.

Brand: MEAN WELL
Weight: 350 Gr
