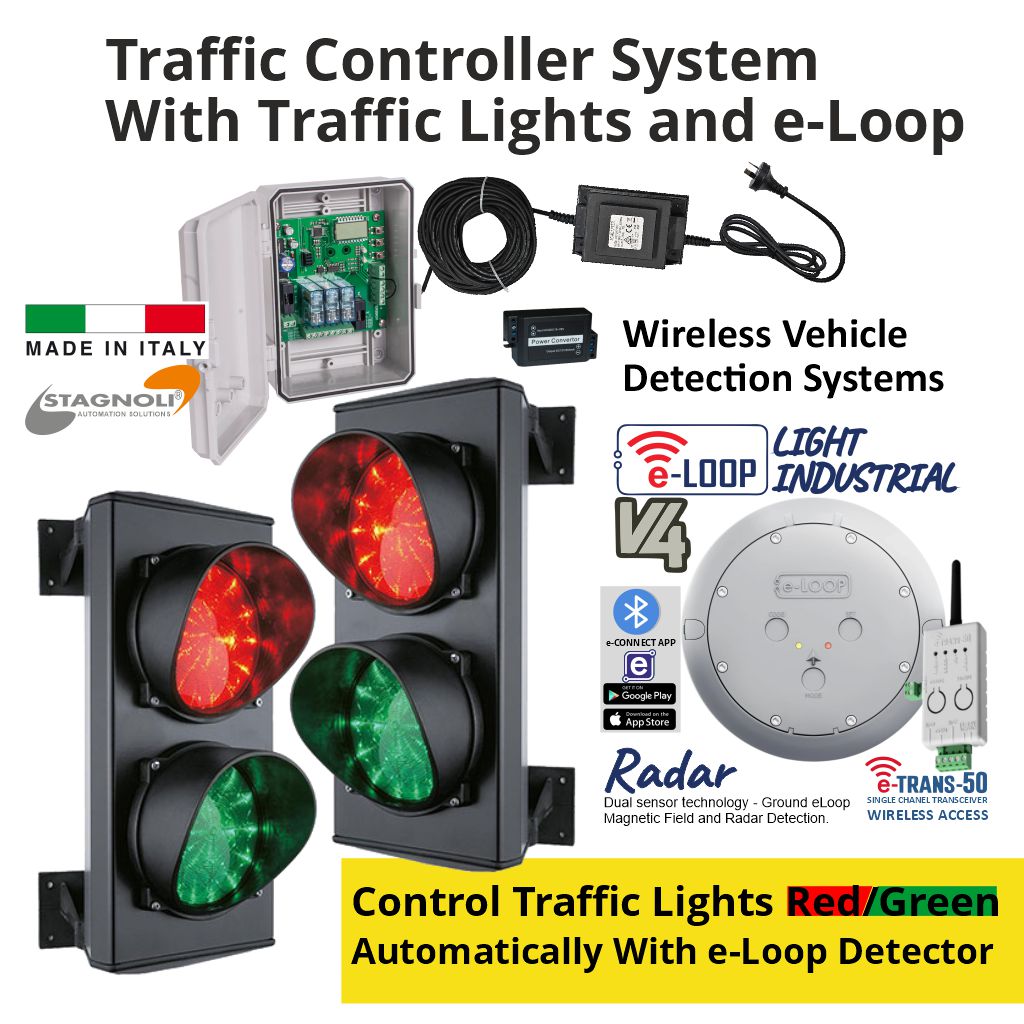

Complete Package for Automatically Controlling The Traffic Light Red/Green With eLoop Radar Detector. Traffic Light Control with Two Traffic Lights, e-Loop Detector Combo | Traffic Light Controller Board and 2 Red and Green LED Dual Traffic Lights | Made in Italy by Stagnoli | Specially designed for alternating one-way roads in apartment buildings (e.g. ramps), company and car park contexts, commercial, residential, and public events

Traffic Controller with E-loop and Traffic Lights Wiring Diagram

Traffic Light Controller for Two-Lights and 2 or 3 Light Lens | 24v ACNSEM3L Made in Italy by Stagnoli

Control board for 2 traffic lights with 2 or 3 lights. Specially designed for alternating one-way roads in apartment buildings (e.g. ramps), company and car park contexts. The ACNSEM3L universal electronic control unit has been a solution for managing two or three traffic lights with two or three lenses in situations where access driveways are narrow and require alternate transit (garage, parking, residence, etc.).

It can be programmed to operate cyclically or logically (e.g. when used with external sensors).

Highlights

• One Board for Two Trafic Lights
• Time-based work method
• Priority-based work method

Specifications and Wiring Diagram

Power: 24Vac/dc
Max Power Current: 0,5 A
Operating Temperature: -20°C to 60°C
Max Lights Power Current: 2A


Control Board Overview

1. Terminal board for power supply 24Vac/dc
2. Power supply and accessories fuse (T0,5A, 5x20)
3. Traffic light 2 terminal board
4. Traffic light 1 terminal board
5. Traffic lights management fuse (F2A 5x20)
6. Priorities input terminal board, with control devices (photocells, detection devices, etc.):
     IN1: programmable input for traffic light 1, N.O. by default
     IN2: programmable input for traffic light 2, N.O.by default
     IN3: emergency programmable input, N.C. by default
7. Auxiliary power supply 24Vac/dc 0,5 A
8. Menu navigation buttons
9. 5-language LCD display (IT, EN, FR, DE, ES)
     DL2- Traffic light operation 1
     DL1- Traffic light operation 2

Double Traffic Lights | Red&Green Trafic Light Flow Control

APOLLO traffic light series with two lights (Red and Green), 24 V AC/DC, vandal-resistant, and IP66.

Used in parking lots, logistic areas, and industrial plants.

Traffic Control Light, Twin, Red & Green

24v Apollo Trafik Light Made in Italy by Stagnoli

Red and Green Dual Traffic Light for Easy Traffic Flow Control to Use Car Parks, Commercial, Residential, Public Events and Organizations)

Technical Specification:

• Number of LEDs: 25
• Brightness: 50Lux
• Lens size: 120mm
• Power supply: 24v
• Protection: IP66 / Vandal-resistant

{file}e-loop-Light-Industrial-Exit-Presence-V4{/file}

{file}E-Trans-50-V4{/file}

12V DC Power Converter

12V DC Power Converter
Specifications

Input voltage: AC & DC 16-28V
Output voltage: DC 12V
Output current: 500mA
Operating temperature: -10° C~55° C (-14~131° F)
Operating humidity: 0-90%
Dimension: 73mm × 40mm × 23mm

External Transformer (Extendable up to 80 metres cable distance)

24V External weatherproof designed to be used in a low voltage cabling application of up to 80 meters, supplied with a pre-connected 20-meter cable. This is a perfect solution when running mains power to the gate is not viable due to costs, difficulty or simply to DIY.

Specifications

Type: Remote External Transformer

Input voltage: 240V AC

Output Voltage: Low Voltage 24v AC

Amperage: 10A

Input connection: Plug With 1m 240AC Pre-Connected Cable

Output connection: 20m Pre-Connected Cable (Extendable up to 80 metres)

Suitability: Outdoor use, 10amp Power-Point
