Product SKU: APC-2000-DC-SI24-KB

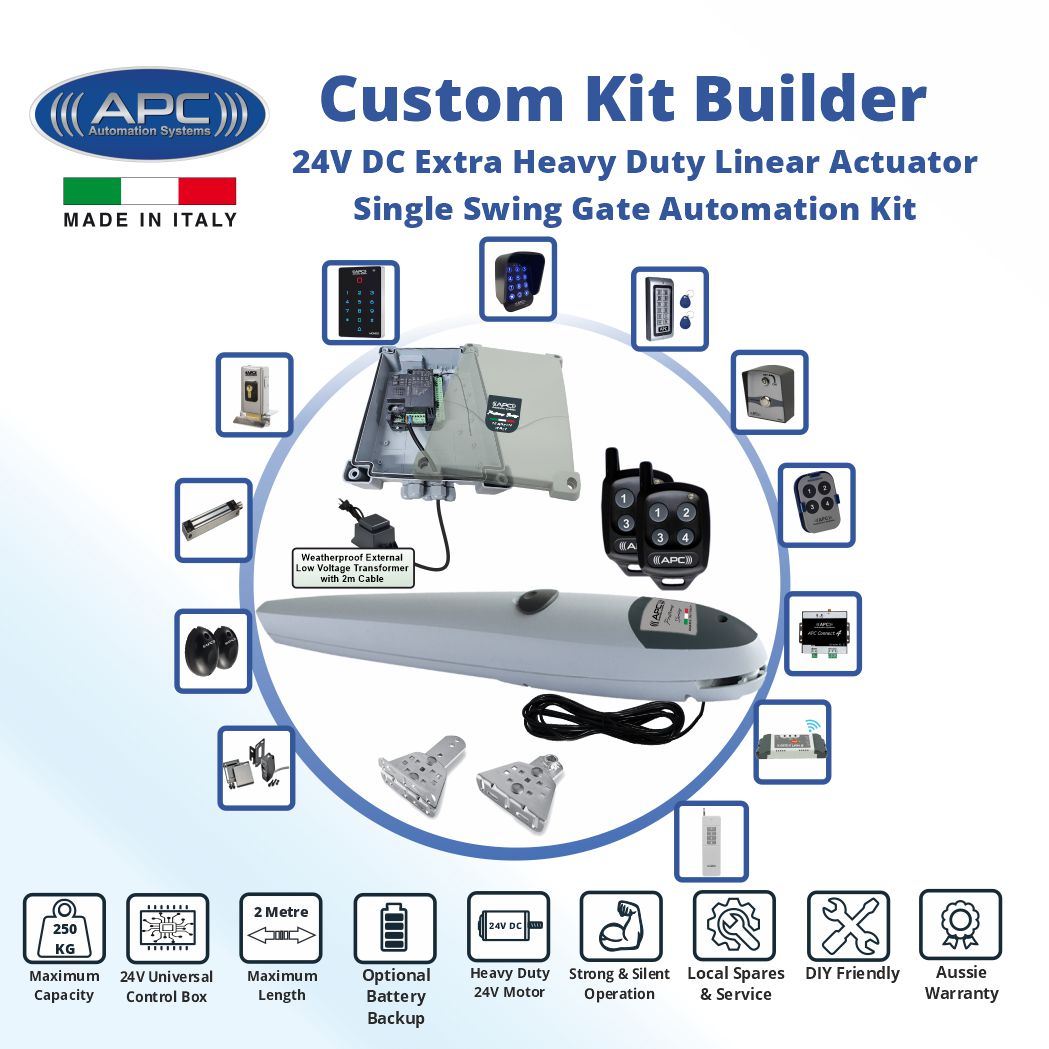

Build Your Own Automatic Single Swing Electric Gate Opener Kit with Italian Made Heavy Duty Gate AutomationAPC PS-2000 Italian Gate Motor And Universal Control Board

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

  • Extra 10% Off

    coupon EASTER24

Build Your Own Automatic Single Swing Electric Gate Opener Kit with Italian Made Heavy Duty Gate AutomationAPC PS-2000 Italian Gate Motor And Universal Control Board

Product SKU: APC-2000-DC-SI24-KB

  •  In Stock

Get More Info..

Kit Price:

$899.00 $1,250.00 APC Automotion Plus Sale

  • Or in 4 payment of $224.75 with afterpay info

  • Single Swing Gate Opener, Electric Automatic Motorized Gate System, Driveway Gate Opener 250Kg/2M Max Capasity

  • Kit Includes

    01 APC Proteous PS-2000 Linear Actuator with Built-in Adjustable Stop. Italian Made Swing Gate Opener Motor (QTY: 1)
    02 Cable for Proteous Swing Gate Opener Motor ( 2 Core 2mm Non-Shielded Cable 3m / 6m ) (QTY: 1)
    03 APC Simply 24V Universal Control Box (QTY: 1)
    04 APC Four Button Keyring Remote (QTY: 2)
    05 Standard AC/DC Powered for Simply24 Control Box (Upgrade Option Below for 24V LV External Transformer with 20m Cable) (QTY: 1)
    06 Two FREE Sunvisor Remote Controls (Promotion) with every Electric Gate Automation Kit order. (QTY: 2)
  • Customise Kit
  • Add-On Items
  • Product Information

Customise your Kit

Add-On Items (Discounted when purchased along with this Kit)

Product Information

Italian Made Swing Gate Opener Heavy Duty Linear Actuator

Italian Made Swing Gate Automation, Strong Gate Motor A2-NYK, Gate Opener





Packing a punch the Proteous PS-2000 system can deliver 1500N of thrust to operate gates up to 250kg or 2m in length. With two built-in adjustable stops for opening and closing positions, the system is versatile in its stopping arrangement.



Italian Made Swing Gate Motor Adjustable Built-in Stopper

Italian Made Swing Gate Opener Strong Gate Motor A2-NYK

Simple to adjust just loosen off and slide to the desired stop point and re-tighten. Also supplied with a second stopper to allow the system to stop in the close position without a physical stop required, this is ideal in Push to Open Outwards scenarios or even Pull to Open scenarios where the gate is high off the ground.

Italian Made Swing Gate Actuator Overview



Italian Made Swing Gate Opener Strong Gate Motor A2-NYK



Italian Made Swing Gate Motor System Capacity

Maximum leaf length: 2 M

Maximum leaf weight: 250 Kg



Italian Made Swing Gate Automation Installation Geometry

Italian Made Swing Gate Opener Installation Geometry Pull to Open Strong Gate Motor A2-NYK
Italian Made Swing Gate Opener Push to Open Installation Geometry Strong Gate Motor A2-NYK



Italian Made Swing Gate Opener System Specifications

Thrust 1500N
Motor Voltage
24v DC
Manual override
Via override key supplied
Working temperature
-20° - +55°
Duty Cycle
50%
Maximum stroke
320mm (without stoppers -30mm for each stopper)
Gates size
2m max
Gate weight
250kg max

24V Universal Control Box | APC SIMPLY24

The APC Proteous Series, Simply24 Control Board is a universal control unit for all 24-volt gate openers. This control board will radically simplify the instiller’s job and provide high-performance levels in safety, time and speed. A single programming method can activate the automatic device and learns the setup cycle. Set-up and operating mode adjustments can be done using dimmers, dip switches and diagnostic LEDs. The control board is protected with a cover to avoid the damage from insects (the biggest cause of control board failure in Australia).



System Features

  • Ultra-High-Security Rolling Code remote system with integrated radio receiver, which allows for the highest form of security for entry to your property.
  • Simple ONE PRESS full feature remote Ultra High-Security Rolling Code learning system (and service-free remote learning options). The system can store up to 170 remotes.
  • 80% Duty Cycle (Can operate for up to 48 Minutes every 60 minutes)
  • Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gate.
  • Customizable auxiliary output for the electric or magnetic lock.
  • Configurable travel distance for pedestrian operation, which can be operated by remote, keypad or push button.
  • Compatible with Induction Loop and Vehicle Motion Detector.
  • Power trimmer to regulate motor power.
  • Diagnostic LEDs and Dipswitches for setting operating modes, motor type, sensors and safety light.
  • Adjustable auto closing setting from 0 to 180 seconds with the trimmer.
  • Always comes with a weatherproof external transformer for easy install and low voltage connections with the gate opener kits.



Special Features

  • Energy Saving Mode.
  • Optional battery backup system
  • Flexibility in programming each channel of the remote
  • Soft Start/Soft Stop (Ramping feature) with adjustable cut-in points
  • Customizable auxiliary output for electrical or magnetic lock
  • Induction Loop Compatible for auto opening or as a safety device.
  • Supports programmable timers.



Safety Features

  • Adjustable Over current adjustments
  • Safety Sensor connection input configurable for opening and/or closing
  • Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times



Control Board Overview



Accessories Compatibility and Controlling Options

  • Constant DC Accessories Output
  • Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
  • Remote controls
  • Induction Loops
  • Weekly Timers
  • Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
  • Keypads (Wired and Wireless Options Available)
  • Exit/entry sensors
  • Intercom system with dry contact output
  • Automatic switching timer
  • WiFi Control System (App-Based Control)
  • GSM Control Systems (Mobile Call/SMS-based Control)



Gate Automation Remote Control Features

Ready to clip onto your keyring | Gate Opener Remote Control

APC Four Button Keyring Remote Control for Gate Automation System

APC Four Button Keyring Remote Control for Gate Automation System

  • Featuring High-Security rolling codes transmitting a unique code chosen at random
  • Slim Design
  • Keyring Clip-on System
  • Completely Backwards Compatible with all legacy APC Control Boards



External Transformer (Extendable up to 80 metres cable distance)

24V External weatherproof designed to be used in a low voltage cabling application of up to 80 meters, supplied with a pre-connected 2-meter cable.





Specifications



Mains power supply: 230 Vac +/- 10%, 50-60 Hz

Motor power supply: 24 V DC 280 W and 10 A peak motor

Warning light power supply: 24V max 15W

Gate pilot lamp power supply: 24 Vdc max 10 W

Accessories power supply (photocells &): 24 Vdc max 10 W

Radio receiver frequency: 433.920 MHz

Storable remote controls: 170

Radio antenna input: Rg58

Operating temperature: -20°C / +50°C
