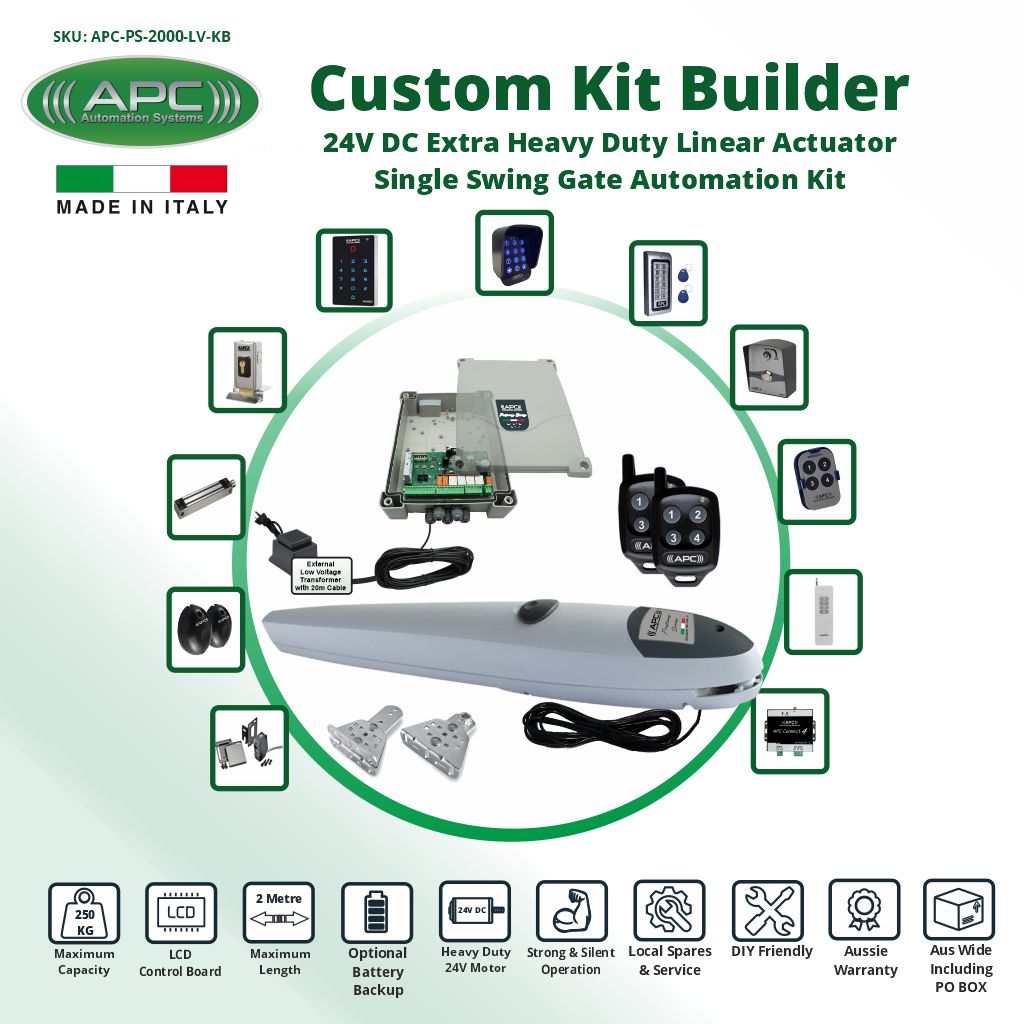

Product SKU: APC-PS-2000-LV-KB
Packing a punch the Proteous PS-2000 system can deliver 1500N of thrust to operate gates up to 250kg or 2m in length. With two built-in adjustable stops for opening and closing positions, the system is versatile in its stopping arrangement.
Maximum leaf length: 2 M
Maximum leaf weight: 250 Kg
| Thrust | 1500N |
|
Motor Voltage
|
24v DC
|
|
Manual override
|
Via override key supplied
|
|
Working temperature
|
-20° - +55°
|
|
Duty Cycle
|
50%
|
|
Maximum stroke
|
320mm (without stoppers -30mm for each stopper)
|
|
Gates size
|
2m max
|
|
Gate weight
|
250kg max
|
The Proteous Logico 24 Control Unit provides the the latest enhanced technology and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system.
There is no function or feature that this system cannot perform. See the full details below.
80% Duty Cycle (Can operate for up to 48 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
Automatic learning of gate travel limits
Completly adjustable slowdown points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds points are adjustable along with there power
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Five underside cable entry with glands
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Direct electric lock connection
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers
Adjustable Over current adjustments
Supports encoder motors and limit switch motors
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times
Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)
24V External weatherproof designed to be used in a low voltage cabling application of up to 80 meters, supplied with a pre-connected 20 meter cable this is a perfect solution when running mains power to the gate is not a viable option due to costs, difficulty or just simply to DIY.
| Transformer | 24V AC |
| Rectification | In Box Rectifier |
| Motor Output Voltage | 24v DC |
| Max Operating Power | 250 Watts (Accesories + Running Motors) |
| Max. Accesories Load | 7W |
| Control Board Duty Cycle | 80% |
| Working temperature | -20° - 50° |
| RF | APC Rolling code 433.92mhz |
| Auxiliary Inputs | 0V Momentary Pulse |
| Accessories Voltage | 24V DC |
| Operator Inbuilt Safety | Over current + Encoder Sensitivity |
