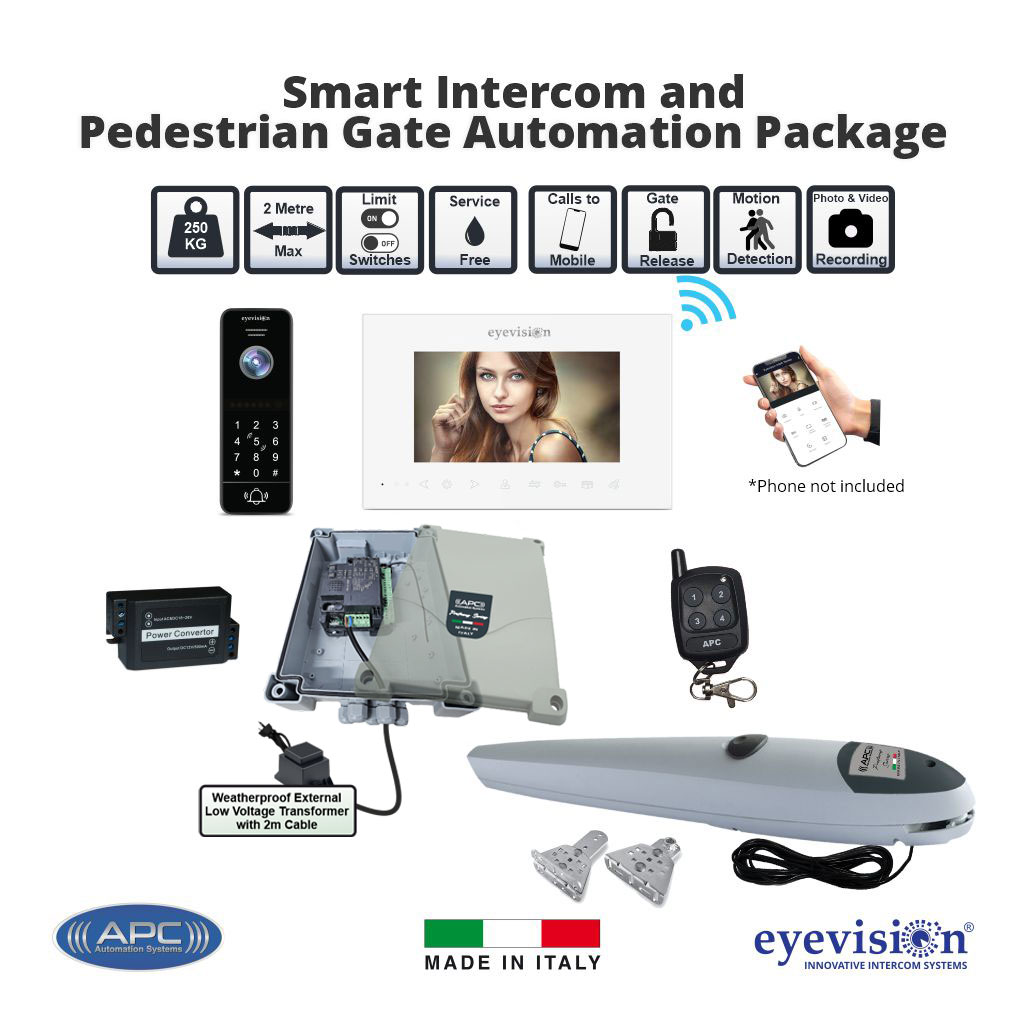

Automatic Pedestrian Gate Opener. Remote Controlled Secure Pedestrian Door/Gate System with Smart WiFi Video Intercom. Gate Automation & Intercom Combo

Packing a punch the Proteous PS-2000 system can deliver 1500N of thrust to operate gates up to 250kg or 2m in length. With two built-in adjustable stops for opening and closing positions, the system is versatile in its stopping arrangement.

The Proteous Logico 24 Control Unit provides the the latest enhanced technology and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system.

There is no function or feature that this system cannot perform. See the full details below.

System Features

80% Duty Cycle (Can operate for up to 48 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
Automatic learning of gate travel limits
Completly adjustable slowdown points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds points are adjustable along with there power
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Five underside cable entry with glands
Pre-Wired and ready to plug into a regular 10A power point or can be hardwired if preferred
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))

The APC Proteous Series, Simply24 Control Board is a universal control unit for all 24-volt gate openers. This control board will radically simplify the instiller’s job and provide high-performance levels in safety, time and speed. A single programming method can activate the automatic device and learns the setup cycle. Set-up and operating mode adjustments can be done using dimmers, dip switches and diagnostic LEDs. The control board is protected with a cover to avoid the damage from insects (the biggest cause of control board failure in Australia).

System Features

• Ultra-High-Security Rolling Code remote system with integrated radio receiver, which allows for the highest form of security for entry to your property.
• Simple ONE PRESS full feature remote Ultra High-Security Rolling Code learning system (and service-free remote learning options). The system can store up to 170 remotes.
• 80% Duty Cycle (Can operate for up to 48 Minutes every 60 minutes)
• Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gate.
• Customizable auxiliary output for the electric or magnetic lock.
• Configurable travel distance for pedestrian operation, which can be operated by remote, keypad or push button.
• Compatible with Induction Loop and Vehicle Motion Detector.
• Power trimmer to regulate motor power.
• Diagnostic LEDs and Dipswitches for setting operating modes, motor type, sensors and safety light.
• Adjustable auto closing setting from 0 to 180 seconds with the trimmer.
• Always comes with a weatherproof external transformer for easy install and low voltage connections with the gate opener kits.

The eyevision Intelli Series intercom is a feature rich state of the art intercom system boasting every feature requested from an intercom syste (and much more...).

Any visitor calls can be recieved by the APP on your smartphone or table along with the monitor at the same time with a large feature set from the APP and also the indoor monitor. No extra modules are required to connect to the internet as the WF 7 slimline indoor monitor has built in Wi-Fi and is able to connect directly to your homes 2.4GHZ Wi-Fi connection.

Two oudoor stations can be connected for front gate/front door/back door (with motion detection & recording) along with up to SIX monitors within the home allowing for the visitors call to be answered from any station and transfered to a diffrent station if required. Within the home you can selectivly intercom between any of the installed indoor monitors. All monitors connected into the system can view any of the installed CCTV camers (up to TWO can be connected into the system). If the CCTV cameras are interconnected with a seperate alarm sensor the system can have alarm recording events occur which can be saved directly to a micro SD card.

The intelli series can have a common release connected directly to the monitor allowing for simultaneous front gate - front door release making it easier than ever to let a guest in without having to switch between menus or running to the door.

• Supports up to TWO Outdoor Stations each with its own electric striker/gate release feature
• Supports up to SIX indoor Monitors
• Common independent electric striker/automatic gate release feature
• Supports up to Two CCTV Cameras (CVI,TVI,AHD or CVBS up to 1.3MP)
• Supports Motion Detection for Outdoor Stations (uses its own built in sensor)
• Supports Motion Detection/Alarm Function for CCTV using external PIR or Reed Switches
• Supports live video stream to a DVR

• Built-in WiFi to connect to your home internet connection
• Tempered Glass with Touch Sensitive Buttons
• Simple easy to use user Interface
• Free to use Tuya Smart APP for all modern mobile phones and tablets
• 11 Languages to choose from
• Ultra Slim 18mm Depth
• 7" TFT LCD Monitor 1024x600 HD Resolution
• Built in mute switch
• Intercom calls direct to Smart phone and Monitor Simultaneously
• Intercom internal call and Call transfer
• Calender screen (time and date) option before entering the main menu
• Anytime REALTIME monitoring of any connected outdoor station/cctv camera
• Set scheduled ring volumes for Morning, Afternoon, Evening and Night
• Can Enable/Disable Rigtone at the outdoor station

• Automatic recording for Motion Detection and Alarm events
• Digital Photo Frame on Standby
• MP3 Player
• Away Voice Message (Voicemail System)
• Custom ringtones

• Ultra narrow 45mm Width fits onto any post, pier or fence
• 1.3MP AHD Camers
• 120° Lense
• 45° Wedge Bracket for best mounting direction
• Built in Keypad with common PIN CODE system
• Built in IC Tag/Card Reader
• Up to 100 Users when using IC Tags (allows for individual User ID's and PIN Codes
• Lockout feature after too many incorrect PIN/IC tag uses
• Supports Exit Buttons
• Supports Fail Secure and Fail Safe Electric Strikers
• Supports Automatic Gate Release

The supplied 45° angle mounting wedge allows for the best alignment during the installation to point the outdoor station in the direction of the guest when the outdoor station is forward facing and the guest may be standing to its left or right side.

The wedge is a universal mount allowing for both left facing and right facing setups.
