7 Inch L Series Add On Monitor

Add on 7 " touch screen monitor, compatible with all the Eyevision 2 wire homes or apartments systems (14 monitors may be connected in a home systems and 32 monitors may be connected in an apartment system).
i-Touch digital technology at its best, the i-Touch 2 wire video intercom system with true colour with digital clarity and is packed with features..

Monitor features:
- Ultra thin with total depth of 23mm.

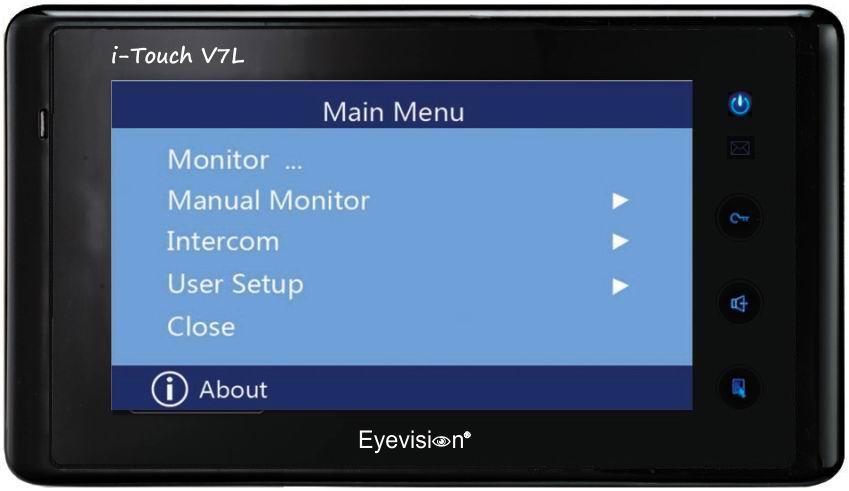

- True colour 7" Digital TFT screen.

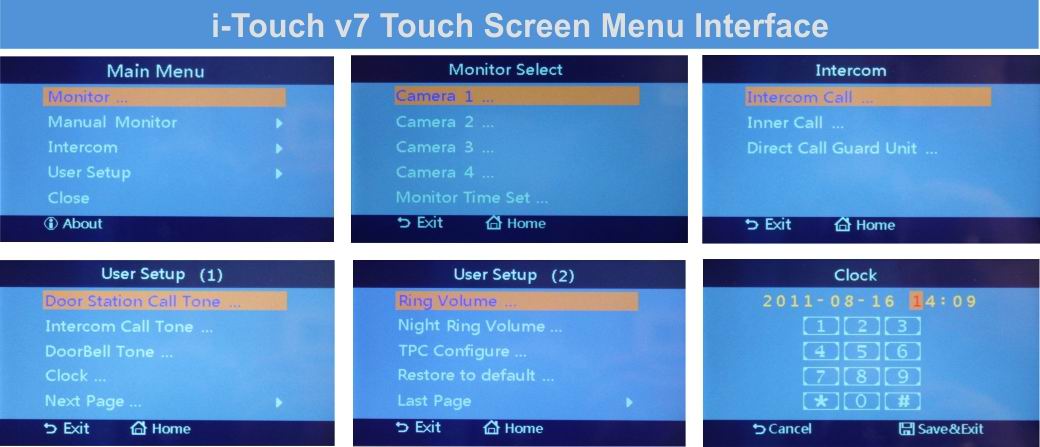

- Touch screen operation with easy to use menus (please see some of the user friendly menu's below)
- Line menu display.
- Adjustable monitoring time.
- Night door bell volume setting to normal, low or mute (6pm to 6am).
- Intercom calling between installed monitors with a setup choice of all monitors calling OR a specific room number.
- Second door bell connection to a specific monitor, using a standard press button will allow the monitor to ring.
- Internal or external 12v buzzer connection.
- 12 Door bell melodies to choose from.
- The touch screen monitor supports 2 unlocking/opening operation of 2 locks, 2 automatic gates or 1 of each.
- Multi monitors connections with a choice of 2 connection methods, (or see the connection examples below),
1. Monitors looping (in-out) (max 14 monitors).
2. DBC-4 distributors (max 16 monitors for villa and 32 monitors for apartments).

Monitor's Specifications

Power Supply

24V DC Supplied by system power supply

Power Consumption

Standby 15mA, Working 400mA

Screen size

7" Colour TFT LCD

Resolution

800*3(RGB)*480 pixels

Monitor Dimension

125(H) x 225(W) x 28(Thick)

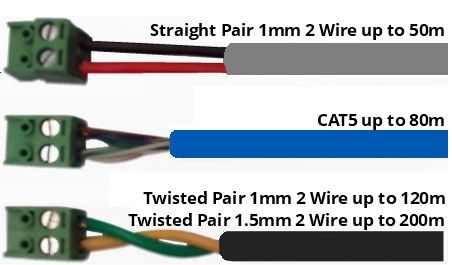

Cable Requirement

CAT5 up to 80m between the door station and each apartment.
Straight Pair 1mm2 up to 50m between the door station and each apartment.
Twisted Pair 1mm2 up to 120m between the door station and each apartment.
Twisted Pair 1.5mm2 up to 200m between the door station and each apartment.

Recommendation: The Eyevision 2 wire monitors are a very powerful monitor and will deliver high quality video and audio, it is recommended to use the best quality cables that will suit your installation, use cables with very good quality copper conductor in order to maximize the clarity of the i-Touch V7.
If you are not committed to cable such as CAT5 or Straight Pair, then it is highly recommended to use a Twisted pair between 1mm2 or 1.5mm2, using this cable will guarantee the best optimized results in video and audio transmission for up to 200m.
Twisted pair cables manufactured for this system are available at very competitive prices.

TOO EZY, 2 wire twisted cable is all that is required to connect this high tech video intercom system.
The following examples are the most common connection methods for a standard connection of up to 14 monitors in a home.

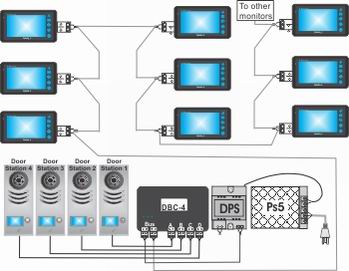

Example of connection of up to 14 monitors using the IN/OUT method while also connecting 4 door stations using a DBC distributor

Example of connecting up to 16 monitors using the a DBC distributor for the monitors and also an example of connecting an electric gate opener and an electric striker

Example of connecting up to 16 monitors using the a DBC distributor for the monitors, a DBC distributor for multi door stations and a DCU for multi CCTV cameras, Exit button and AC light switching
