Product SKU: SGK-R78-60-U200

Up to 6m Complete Commercial Sliding Gate Hardware Kit

Upload Images (Max. 5 images can be uploaded)

Upload
no file chosen

Up to 6m Complete Commercial Sliding Gate Hardware Kit

Product SKU: SGK-R78-60-U200

  •  In Stock

  • Freight DeliveryFreight Delivery
    This is a large item and will require a freight quote. Please add all items to your cart and continue through the checkout process for a complete freight delivery cost.
Get More Info..

Kit Price:

$325.00

  • Or in 4 payment of $81.25 with afterpay info

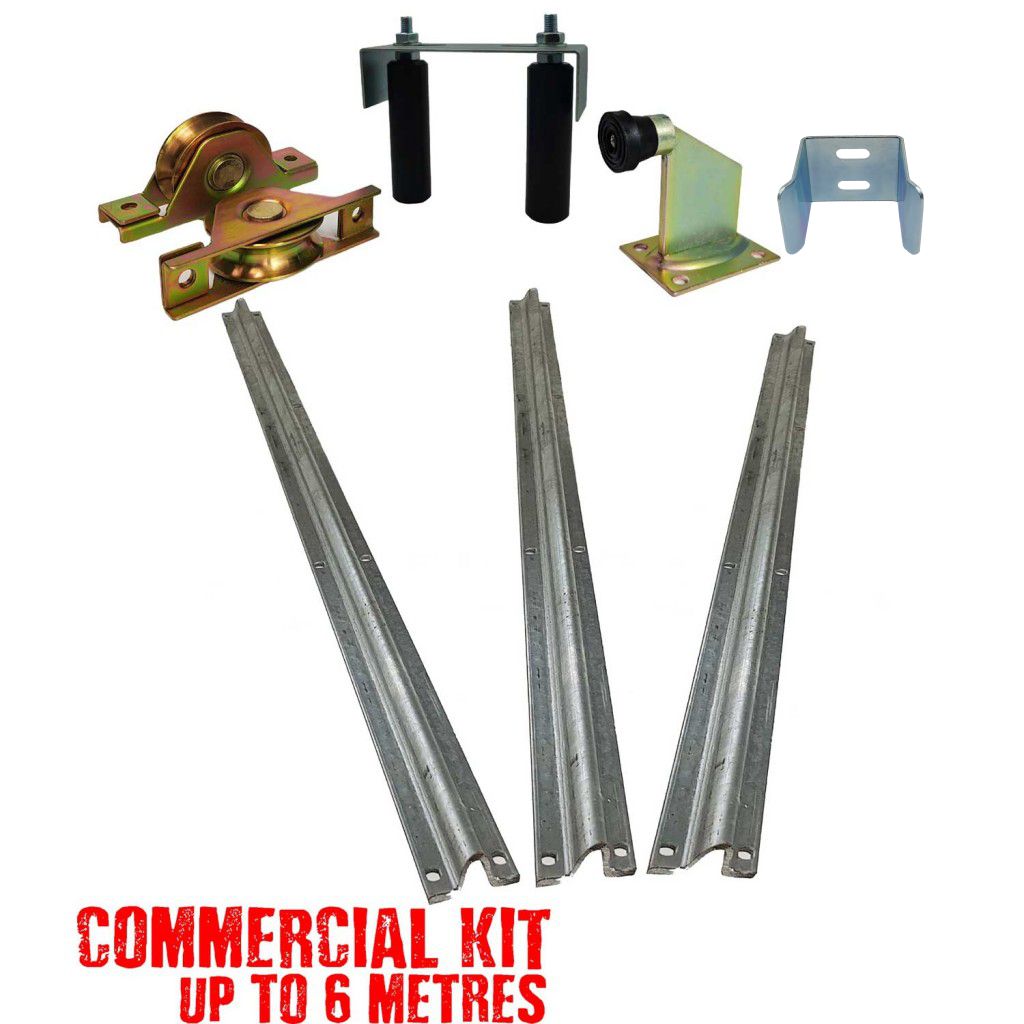

  • Wheels, Track, DUAL POST Upper Roller System, U Guide and Gate Stop

  • Kit Includes

    01 Singular 68mm Recess Mount Wheels (QTY: 2)
    02 200mm U Bracket (QTY: 1)
    03 150mm Roller (QTY: 2)
    04 70mm Galvanized U Guide Gate Receiver Catcher (QTY: 1)
    05 115mm High Bolt Down Anodized Gate Stop (QTY: 1)
    06 2m Galvanized Sliding Gate Track (QTY: 6)
  • Customise Kit
  • Product Information

Customise your Kit

Product Information

68mm Recess Wheels | Sliding Gate Hardware






  • R10 profile to suit the entire range of APC Galvanized profile tracks

  • Dual bearing system for the capacity of 250KG per wheel (500kg per pair)

  • Fits into 50mm heigh tubing with a cut-out size to fit the wheel of 70x35mm

  • Raises the gate by 30mm when installed with the floor track

  • Easy installation with pre-punched fixings, just drops into place after cut out and screws to the tubing from the flanged sides








150mm Nylon Roller and 200mm U Bracket Set






  • 200mm Wide Galvanized steel construction for long life outdoor use

  • 150mm Nylon rollers with completly adjustable positions

  • 100mm internal clearance between rollers at full span, allowing for a minimum of 25mm adjustment for the gate the gate and up to a maxiumum of 100mm.

  • Can be welded to the posts or drilled and screwed through for mounting.





Bolt Down Galvanized Floor Track






  • R10 profile to suit the entire range of APC recess and flat mount wheels

  • Rounded profile provides the least resistance for sliding gate movment over the alternative "V groove"

  • High strength 3mm steel, Galvanized for complete long life outdoor use

  • Pre-punched fixing holes ready for anchor nails (Supplied)

  • Easy to install, bolts down to concrete! No need to set in during concreting


    •



70mm U Guide






  • Galvanized steel construction for long life outdoor use

  • Flared entry to guide gate into the reciever in case of wind loads pushing the gate

  • 70mm internal clearance ideal for standard steel or aluminum gates gates that are offset from the closing post or clad gates no greater than 65mm thickness

  • Pre-punched fixing holes ideal for adjustments prior to final fixing


    •



Anodized Gate Stop






  • Anodized steel construction for long life outdoor use

  • 115mm Height

  • 40mm Rubber bumper

  • Solid 100x80mm base

  • Pre-punched 10mm fixing holes


    •



Your Customised Kit Includes:

No Changes.
        • Kit Quantity:
          • 1

        • Your (Kit and Add-On) Price:

          $325.00
